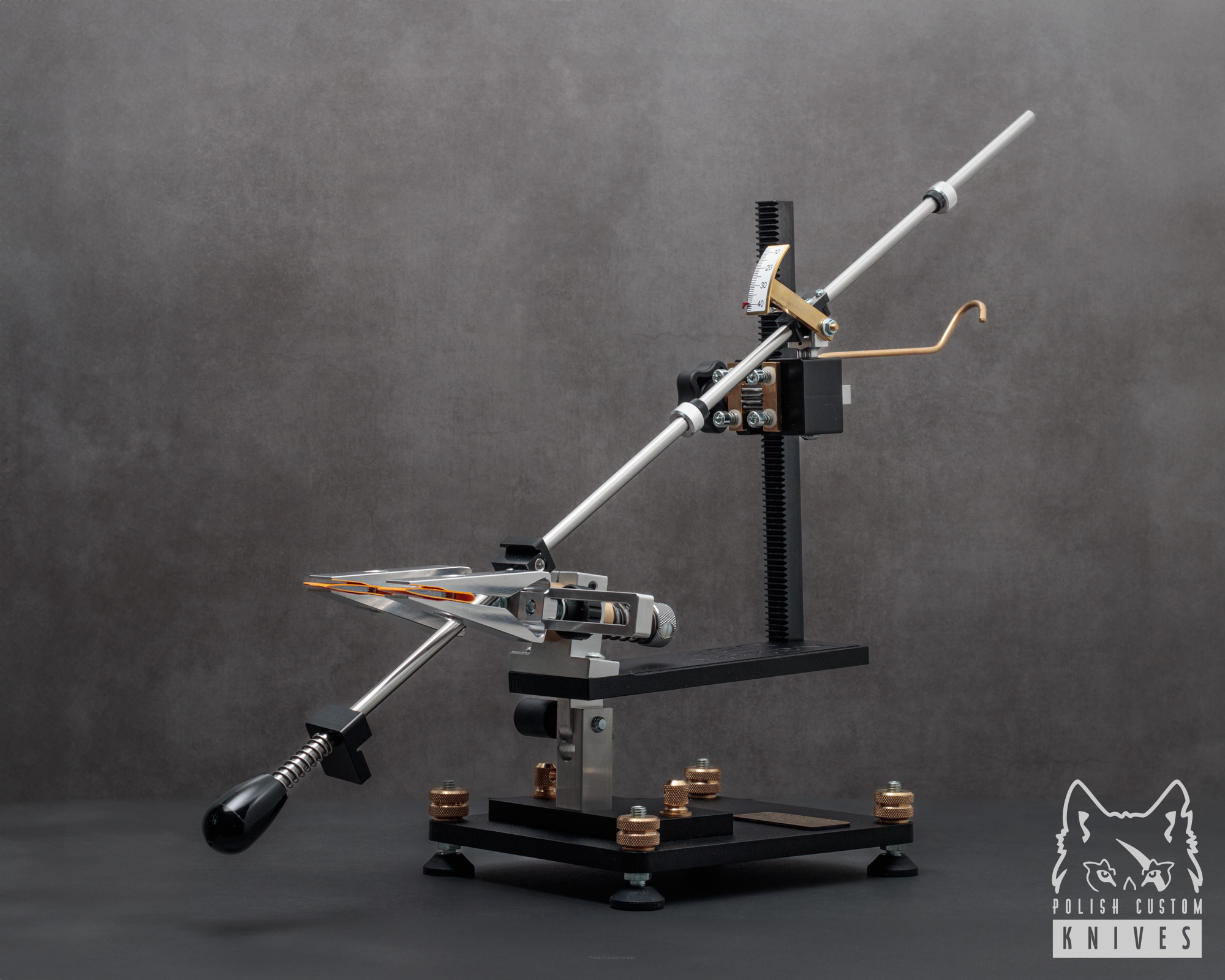

The device is intended for sharpening kitchen, hunting, folding knives of various shapes and sizes. Blade for accurate and stable fixation of the knife in the device clamps, as well as the ability to turn the knife, without removing it from the clamps sharpening occurs quickly, easily and does not require special operator skills. The angle of sharpening is changed by raising or lowering the hinge joint along the vertical stand.

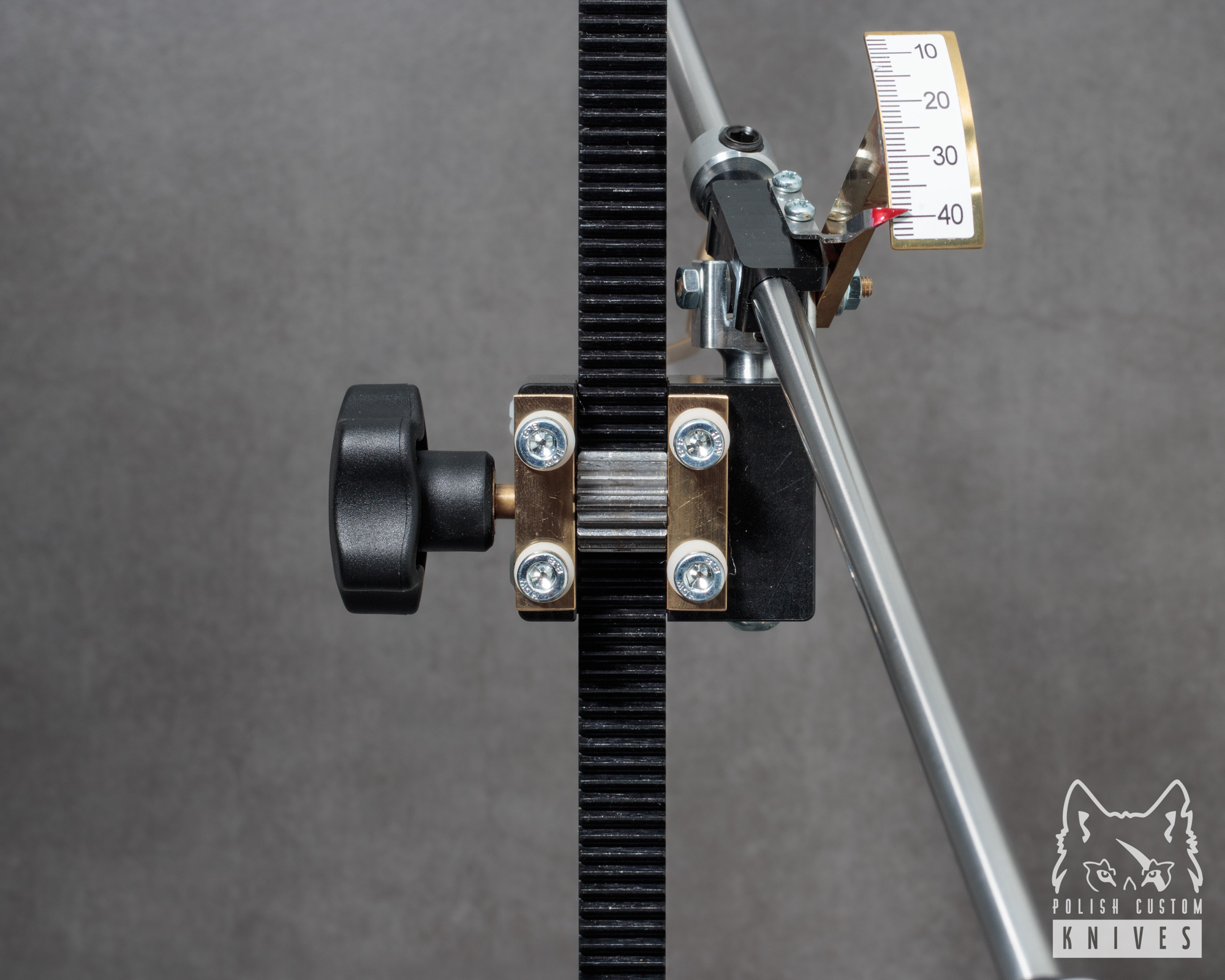

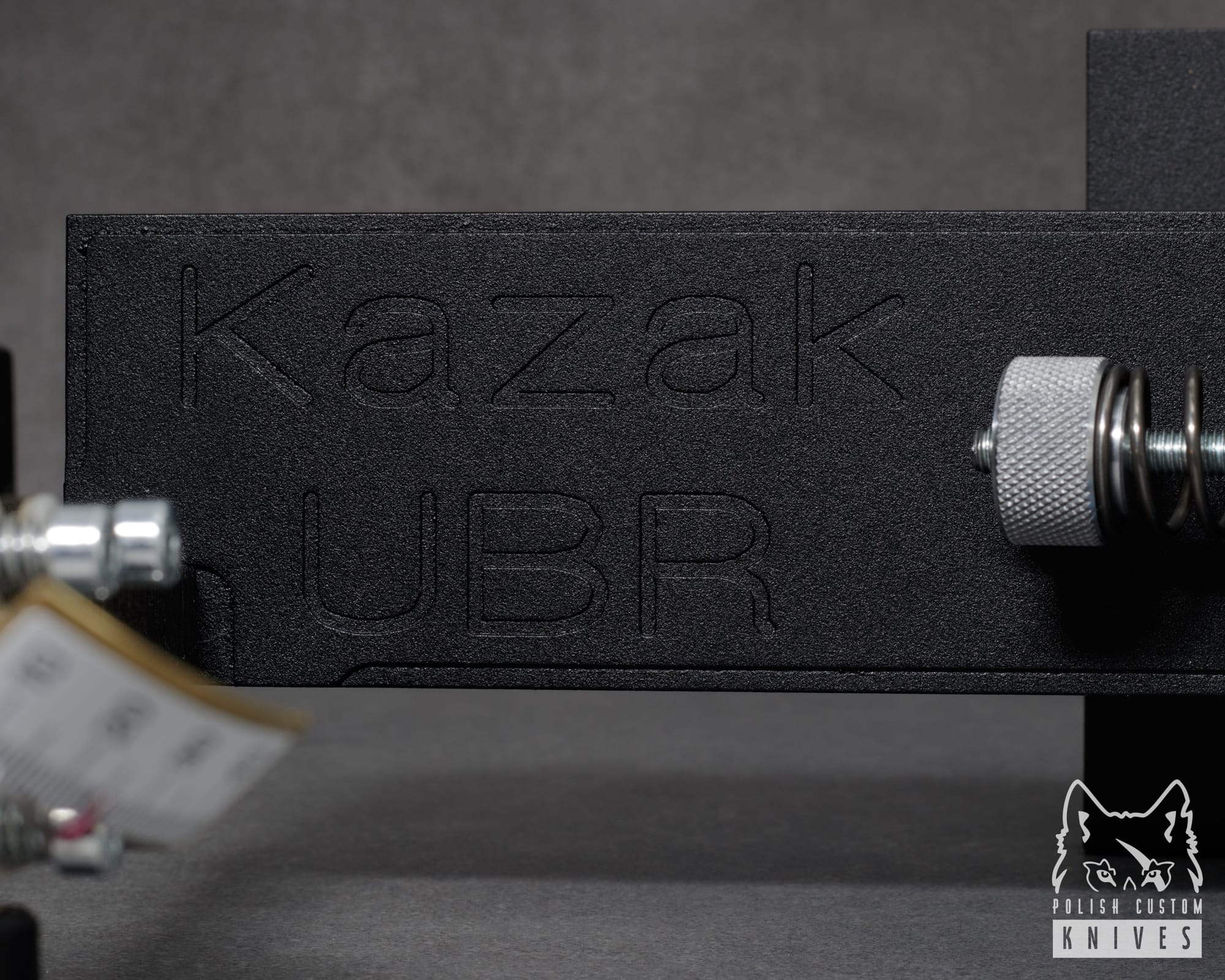

In the device “Kazak UBR” the quick adjustment knot (UBR) of the grinding angle is a rack along which, when the handwheel rotates, the carriage with the hinge moves. This solution allows you to quickly and accurately, literally in one movement to change the angle of sharpening.
A unique feature is the unit for adjusting the angular position of the entire device in a vertical plane, which makes it possible to adjust the position of the device in accordance with the individual requirements of the operator.

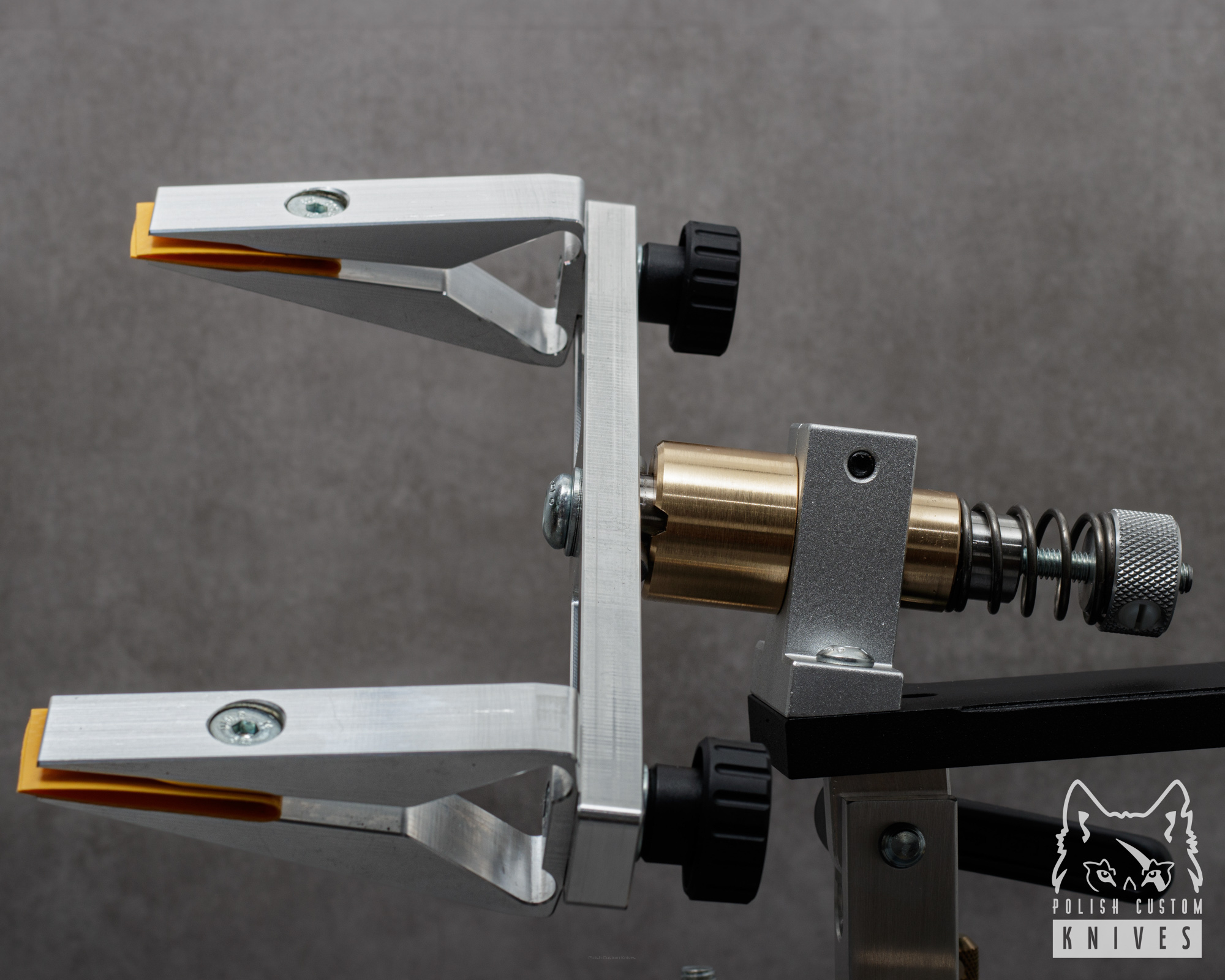

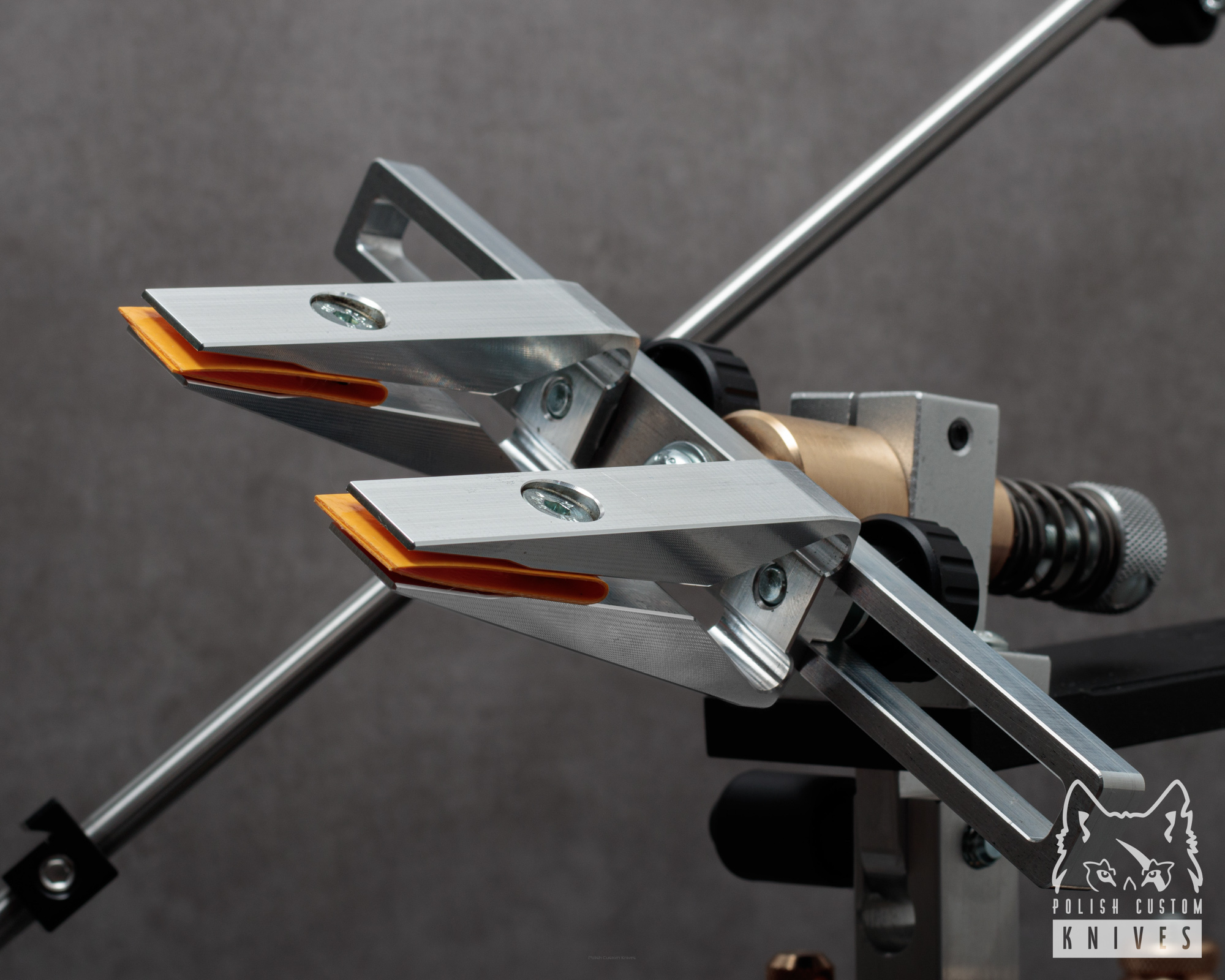

Clamps of the blade of the original design are made of alloy 7075, heat-treated.
The horizontal guide rod with a diameter of 8 mm is made of alloy steel, has a hardness of 58-60 HRC, and a surface roughness of 0.4 Ra.
The set of sharpeners includes:
-hexagon screwdriver 4 mm
– clamp
| Weight | 2.5 kg |
|---|---|
| Dimensions | 210 x 200 x 670 mm |
| The greatest length of a grinding stone |
250mm |
| Length of horizontal guide |
670mm |
| The maximum distance between the blade clamps in their extreme position |
190mm |
| Maximum thickness of sharpened blade |
6mm |
| Angle of sharpening (one side) with blade width 25 mm |
min – 11°, max – 31°. |
Note:
1. The latest version of the device has elegant black elements that give it a modern character
2. Podium available separately
The company "Kazak Poland" has been producing knife sharpeners since 2014. Thanks to the joint efforts of designers and engineers, the "Kazak Poland" brand quickly became one of the leading manufacturers of sharpening devices in the world.
Distinctive features of grinding devices “Kazak”:
The big effort of our company does not stop there, constantly improving the quality and improving the design of the grinding devices “Kazak”.
The convenience and quality of the sharpening devices “Kazak” were highly appreciated by users from Ukraine, Russia, Kazakhstan, Israel, Lithuania, Germany, Poland, Switzerland, Ireland, USA and Taiwan.
