Our main task is to create all the conditions for convenient and precise control over the sharpening of the knife. Without high-quality lighting of the working area, it is impossible to get a good result . In the course of several experiments, we decided that the light source should be almost close to the sharpened knife.

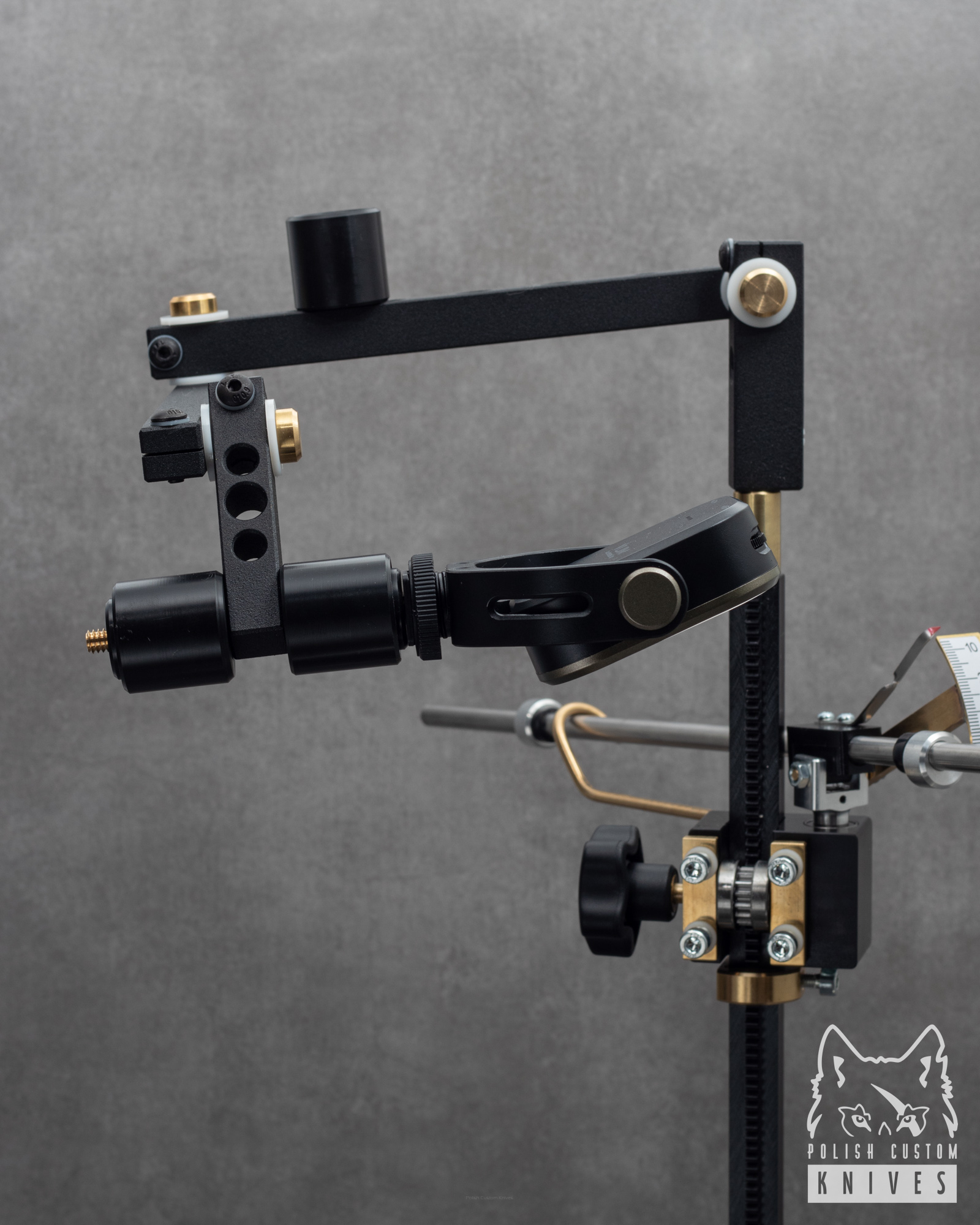

Structurally, the lighting is a bracket consisting of four links. All links are connected to each other pivotally by means of the axes.
All axes are connected by terminal clamps.

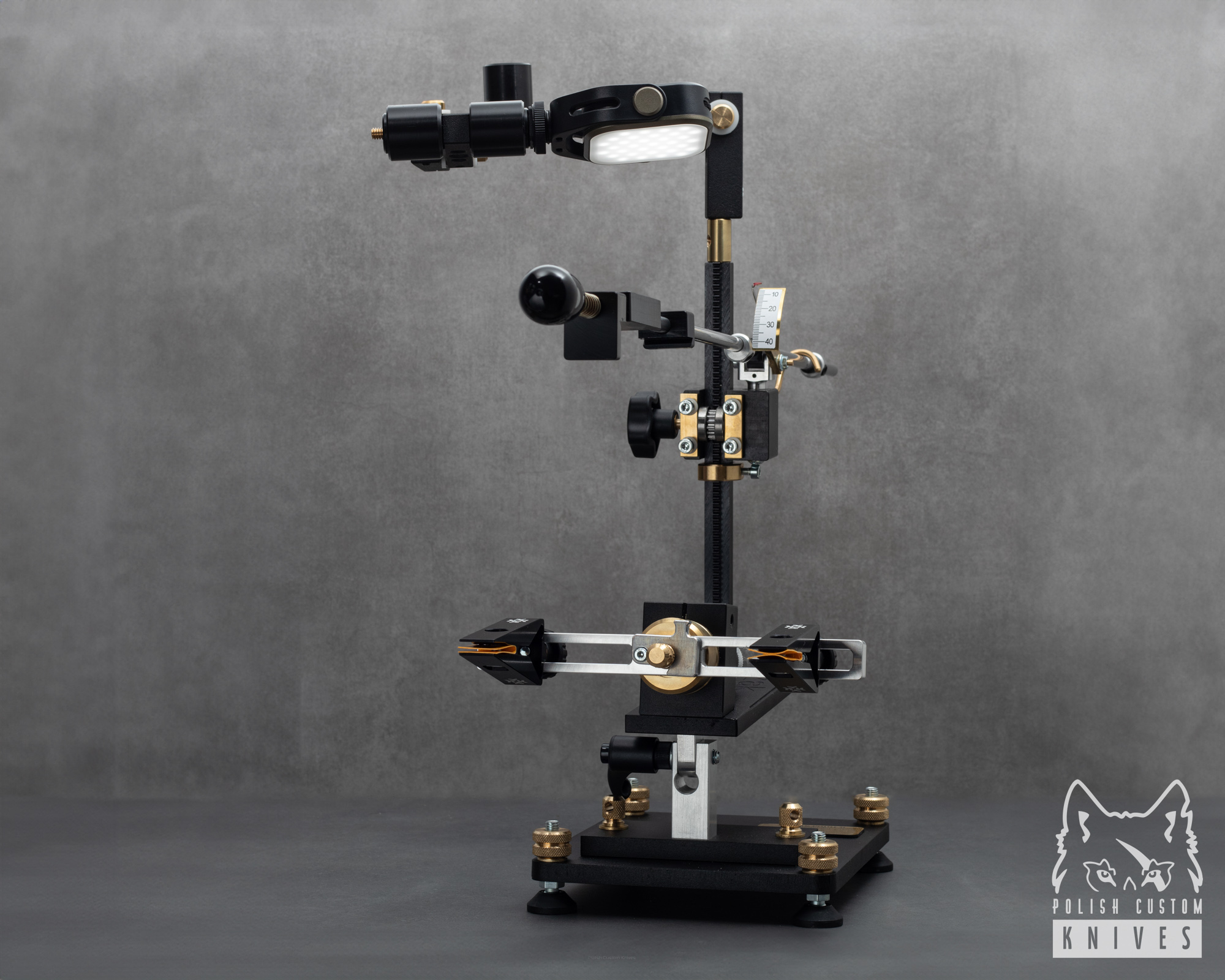

The system works with sharpeners Kazak UBR and Kazak PRO-in which there is a hole with an m8 thread in the upper part of the toothed rail.
The system rotates 360 degrees around its axis and has a rubber ring that allows the system to work smoothly.
The system has an adjustment of the ease of movement of each link by adjusting the screws of the “hexagon screw” type.
The system has two magnetic traps. In which you can install a light source, a smartphone holder or a power bank.
Materials of device manufacturing :
The links are made of 7075 aluminum and have an anti-slip coating
The hinge pins are made of brass
The traps are made of durable plastic polyacetal

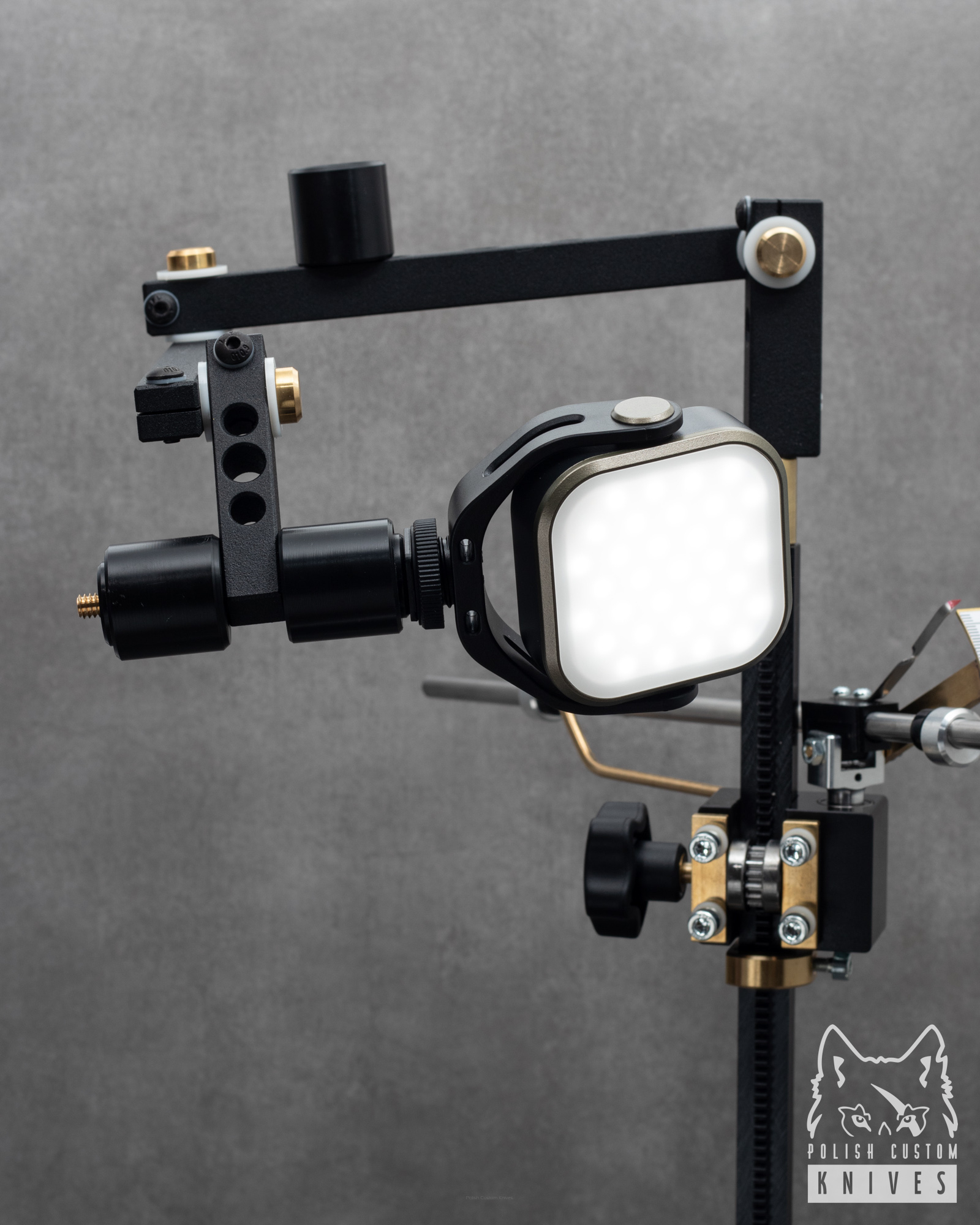

The VIJIM VL66 360 Rotating lantern has the following characteristics :
The light color and brightness can be steplessly adjusted via the rotary knob. 33pcs white and 33 yellow dioids make the lighting more soft and non-blinding.
Freely adjustable 360°: The light is supported by a U-shaped stand, you can easily set different lighting angles with one hand.
Rechargeable Battery: Powered by a built-in 2000mAh battery. The light can be charged via Type-C to a Type-A cable from a computer, power bank, or power adapter.
Technical characteristics of the lamp :
LEDs: 33pcs white, 33pcs yellow
CRI:≥95
Output Power: 5W
Color temperature: 3200K-6500K
Battery: Built-in rechargeable 3.7 V/2000mAh
Type-C Interface
Sizes: 9.1 * 7.8 * 2.6 see

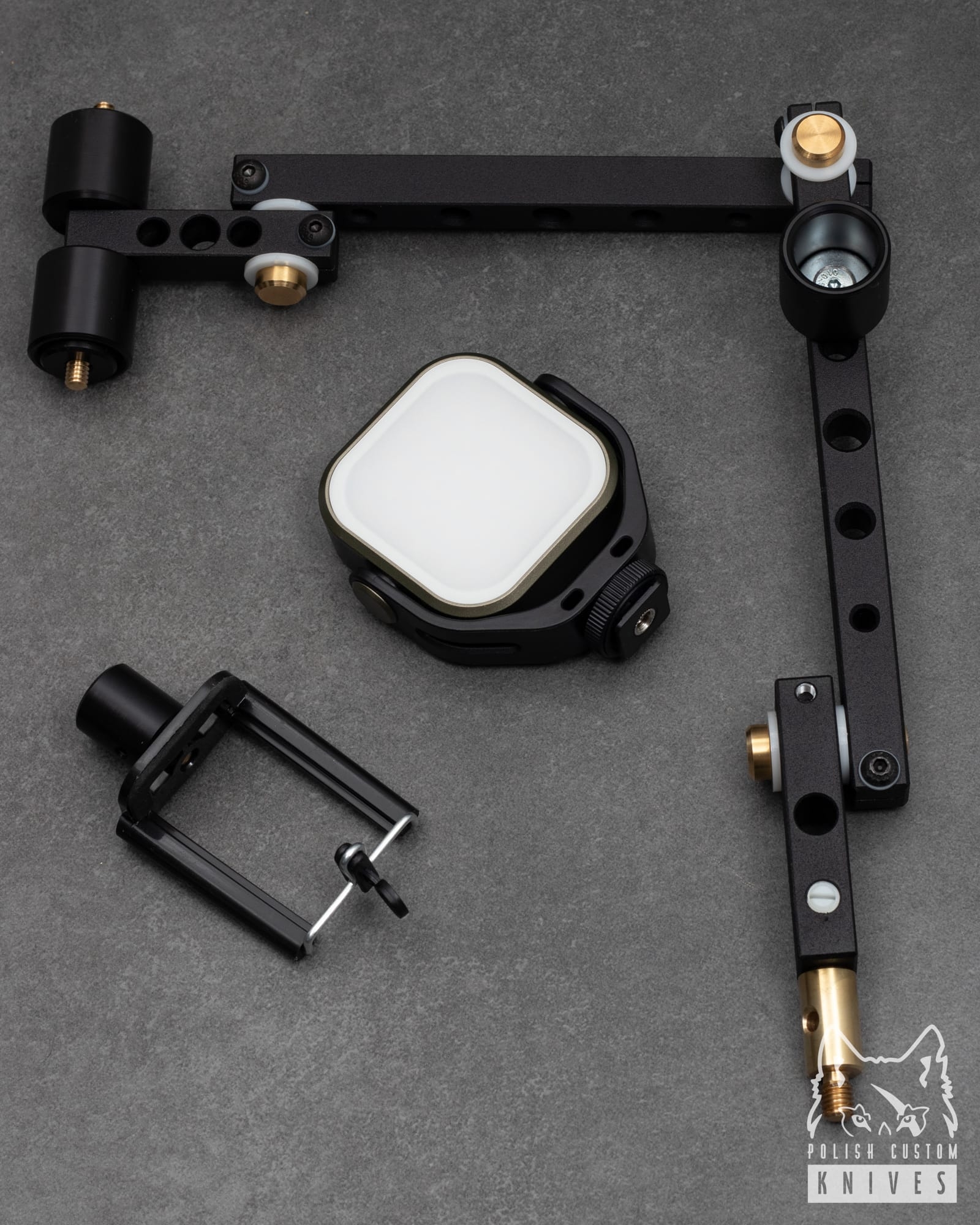

Complete set of the lighting system KAZAK V 1.2:
bracket consisting of four links
3 traps (the trap is a nest+magnet)
light source x 2
phone holder
Detailed visual description of the product in the video below.
